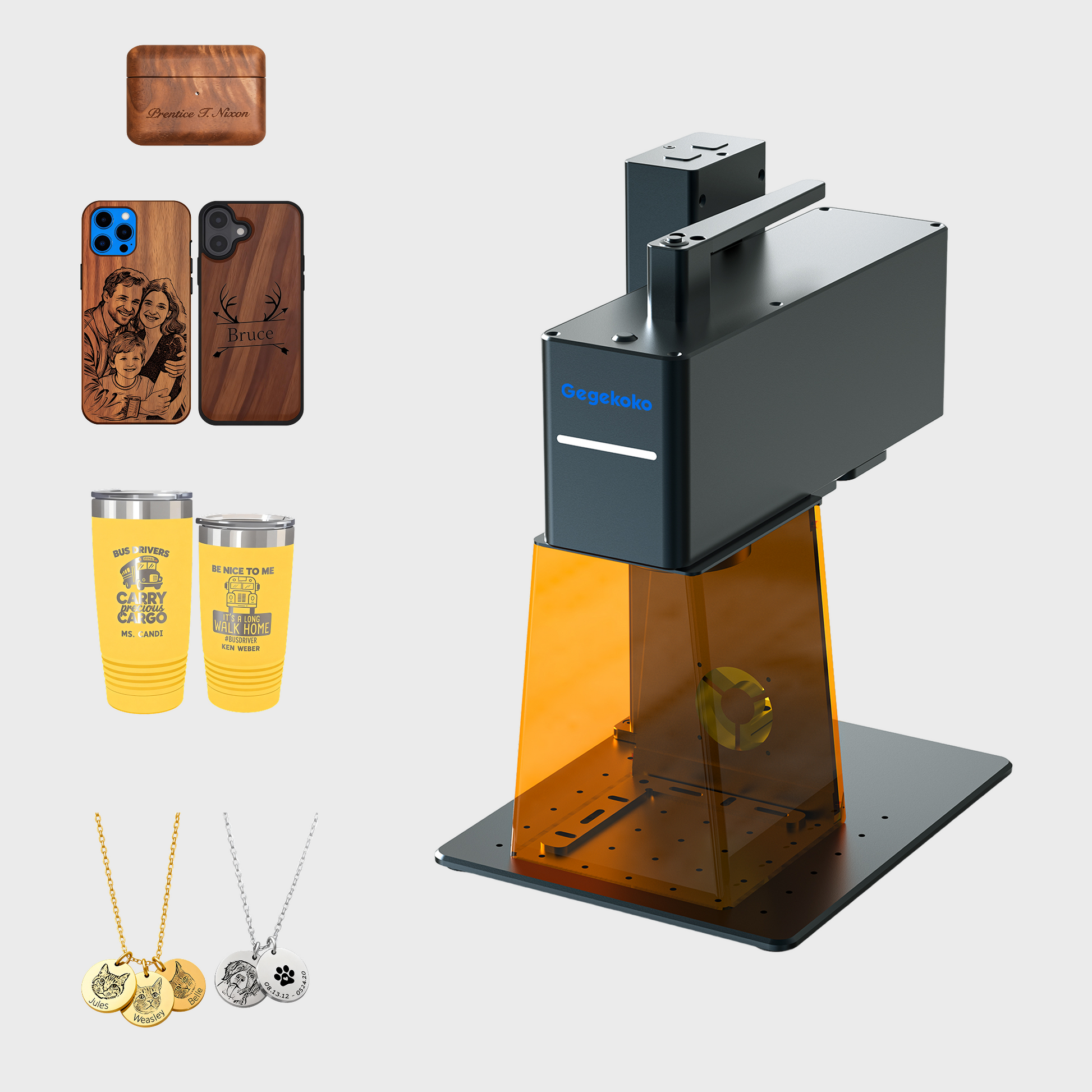

InstaMark Fast and Portable Dual Laser Engraver

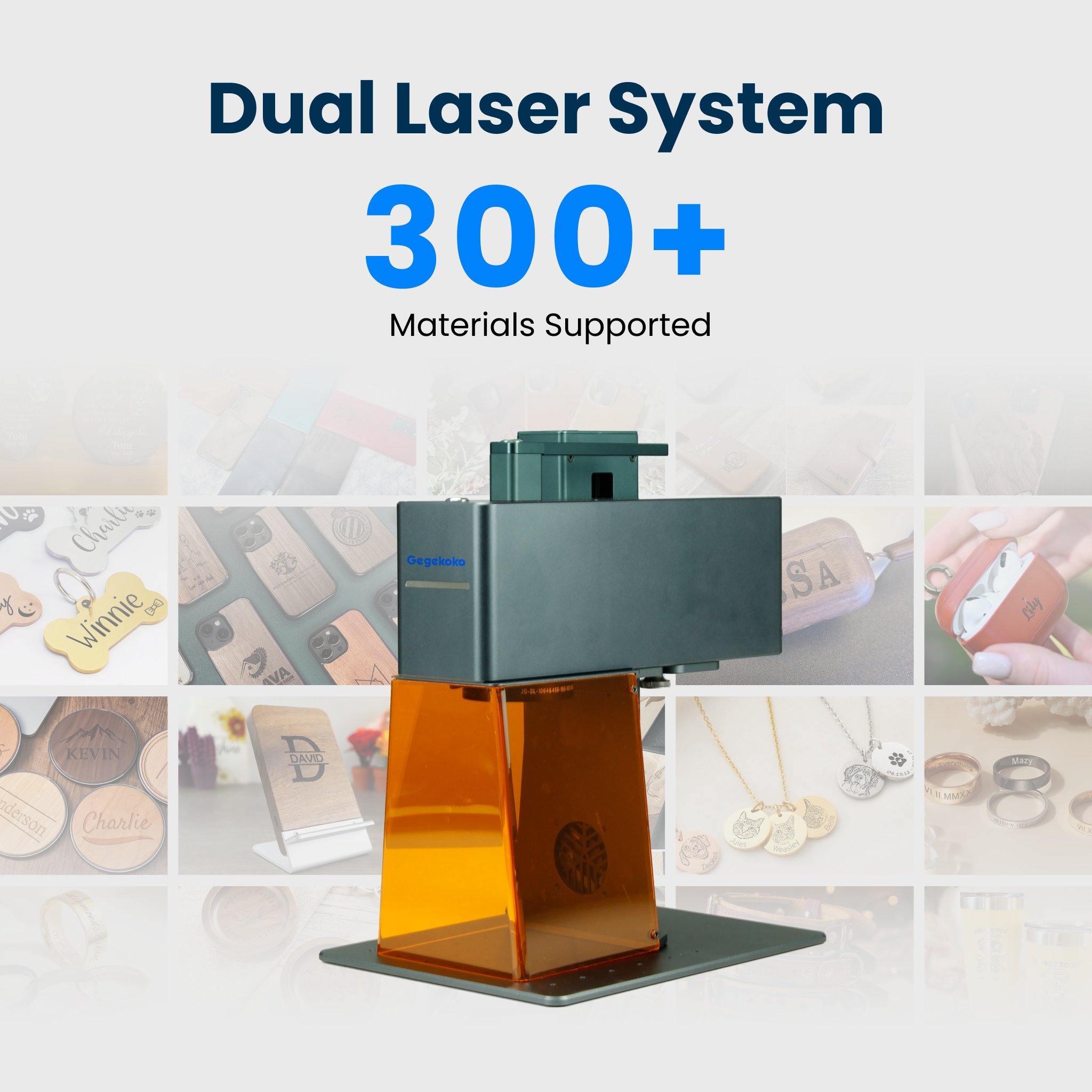

- Dual Laser System: 2W Fiber Laser for metals and glass, 10W Diode Laser for wood, plastic, and leather.
- High-Speed Engraving: 7000mm/s engraving speed for rapid production.
- Precision Marking: 0.001mm accuracy for detailed engravings.

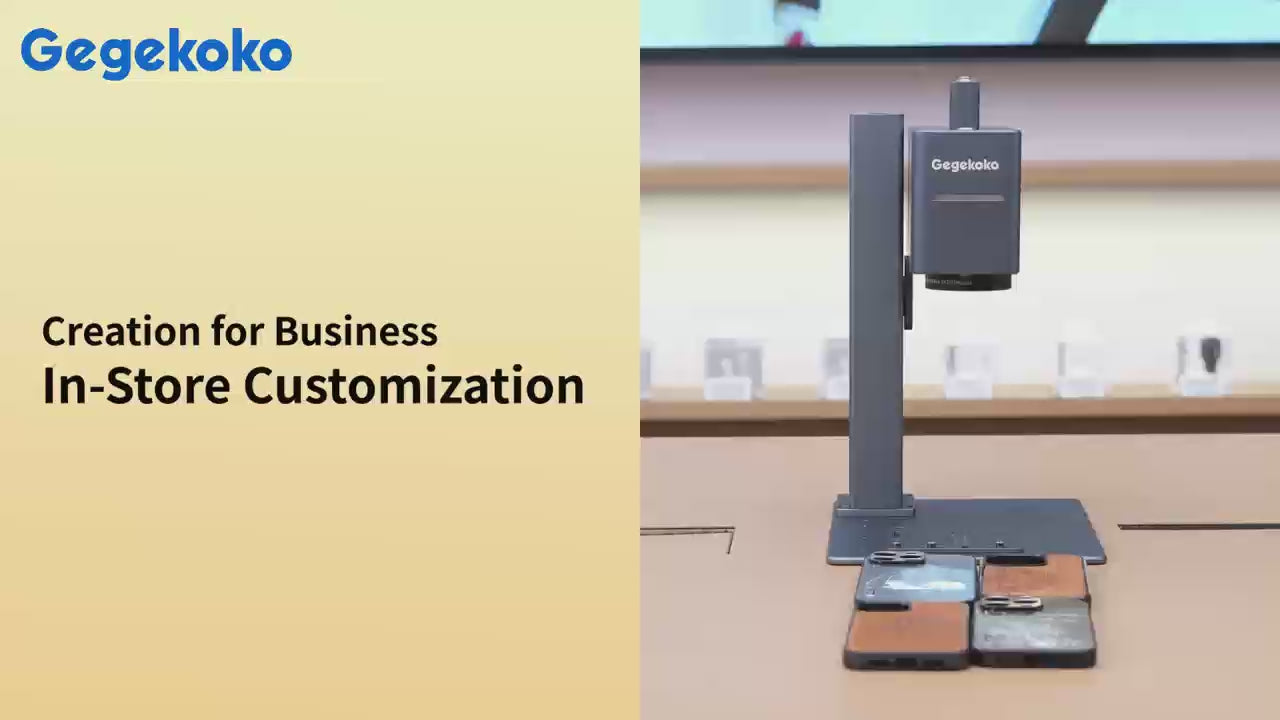

- On-Site Customization: Ideal for electronics, personalized gifts, jewelry, and pet products at retail or events.
- User-Friendly: Pre-assembled, easy setup, supports Lightburn and multiple file formats.
- Wide Compatibility: USB and Wi-Fi connectivity for flexible operation.
Dual Laser System: Precision and High-Speed Engraving
Engraving Made Easy, Customization Made Perfect!
Engrave Your Products, Elevate Your Brand!
Easy to Use – Beginner-Friendly
1
Customize Your Design
2
Just Seconds,Your Mark is Done
3
Get the Result
0.001mm Accuracy
Fine Engraving: The engraving of InstaMark is finer and more precise, with an engraving accuracy of up to 0.001mm
Field Lens
Includes a field lens for even printing, improving quality and engraving accuracy.

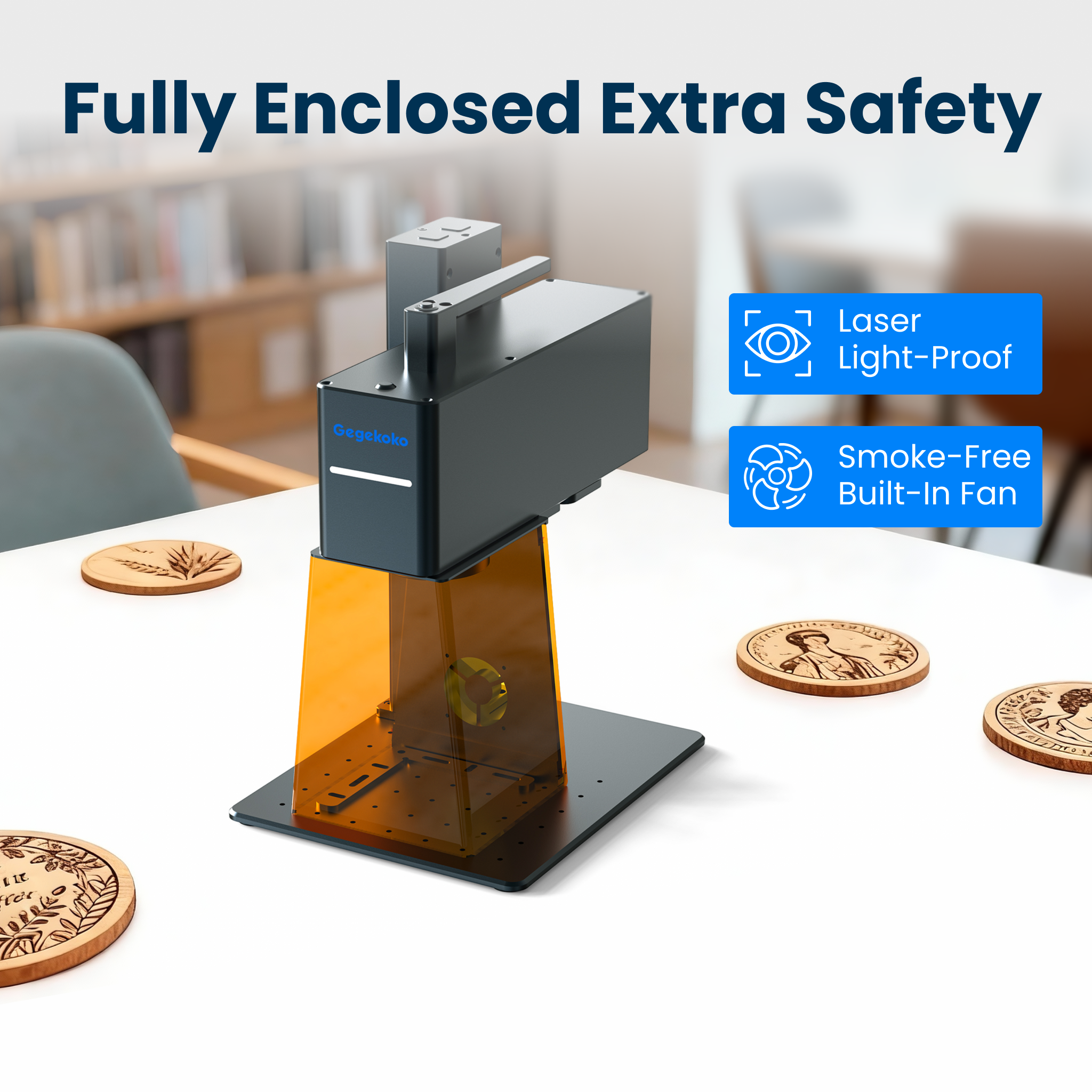

Laser Light-Proof
Effectively blocks laser damage.
Overheat Protection
Detects heat and prevents overheating.
Emergency Button
Instant emergency shutdown.
Smoke-Free Built-In Fan
Automatically vents smoke during use.
Safety Design in Mind, Ensure Your Safety
Trusted by Leading Brands
We’re proud to partner with top businesses worldwide, delivering innovative solutions that drive success.
InstaMark Fast and Portable Dual Laser Engraver Technical Specifications
| Laser Information | laser Power | 2W | 10w |
| Laser Type | Fiber Laser | Diode Laser | |
| Wavelength | 1064nm | 455nm | |
| Cool Method | Air Cooling | ||
| Marking Information | Working Area | 100*100mm | |
| Focal Length | 170mm | ||
| Mark Speed | 7000mm/s | ||
| Mark Depth | 0.015-0.5mm (depending on material differences) | ||
| Motion Accuracy(Min Line-width) | 0.001-0.03mm (depending on the material) | ||
| Laser Spot Size(Min Character) | 0.2mm (depending on material difference) | ||
| Work Support |
Lifting Method | Electric lift | |
| Focus Method | Dual Red Light Focusing | ||
| Connect Method | Computer -USB； Mobile phone- WIFI | ||
| Software Language | Computer: Chinese/English/German/French/Russian/Arabic/Japanese/Korea | ||
| Mobile phone: Chinese, English | |||
| Support File Formats | PLT/DXF/AI/SVG|JPG/GIF/BMP/PNG, etc | ||
| Supported Software | Lightburn | ||
| Support System Types | Windows/MacOS/Android/iOS | ||
| Contig Information | Laser Device | ldeeda | |
| Galvanometer | 2BTK | ||
| Control Card | ADD Mark | ||
| Field Lens | JGZ | ||
| Power Supply | MW | ||
| Computer | -- | ||

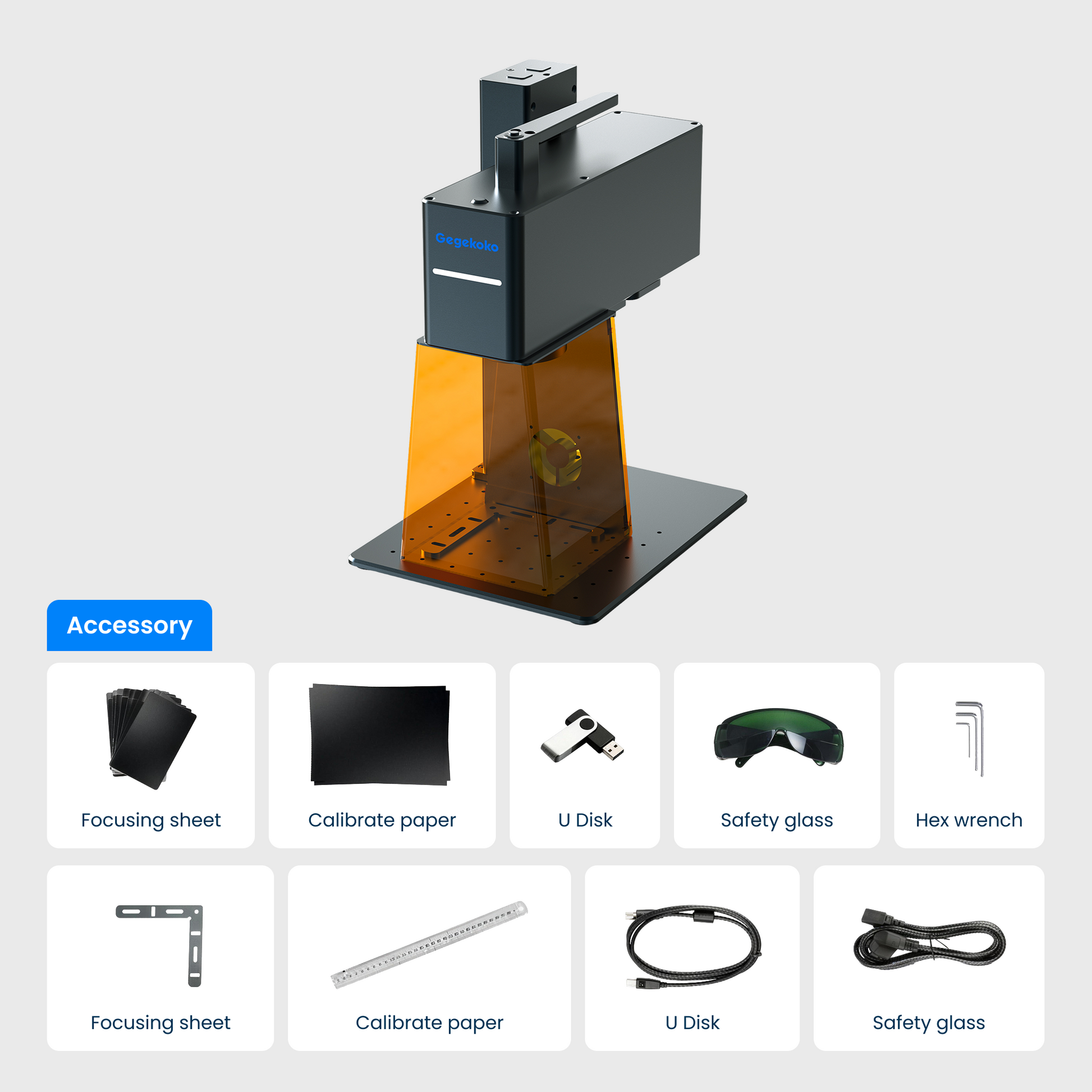

| Standard Contiguration | Focusing sheet / Calibrate paper / U Disk / goggles /Straightedge/ He wrench /Positioning strip/Data line/Power line |
||
| Optional | Rotating fixture | ||
| General Information | Max. Machine Input Power | DC(24V, 5A) | |
| Power Adapter Input Voltage | AC(100-240V, 50-60Hz) | ||

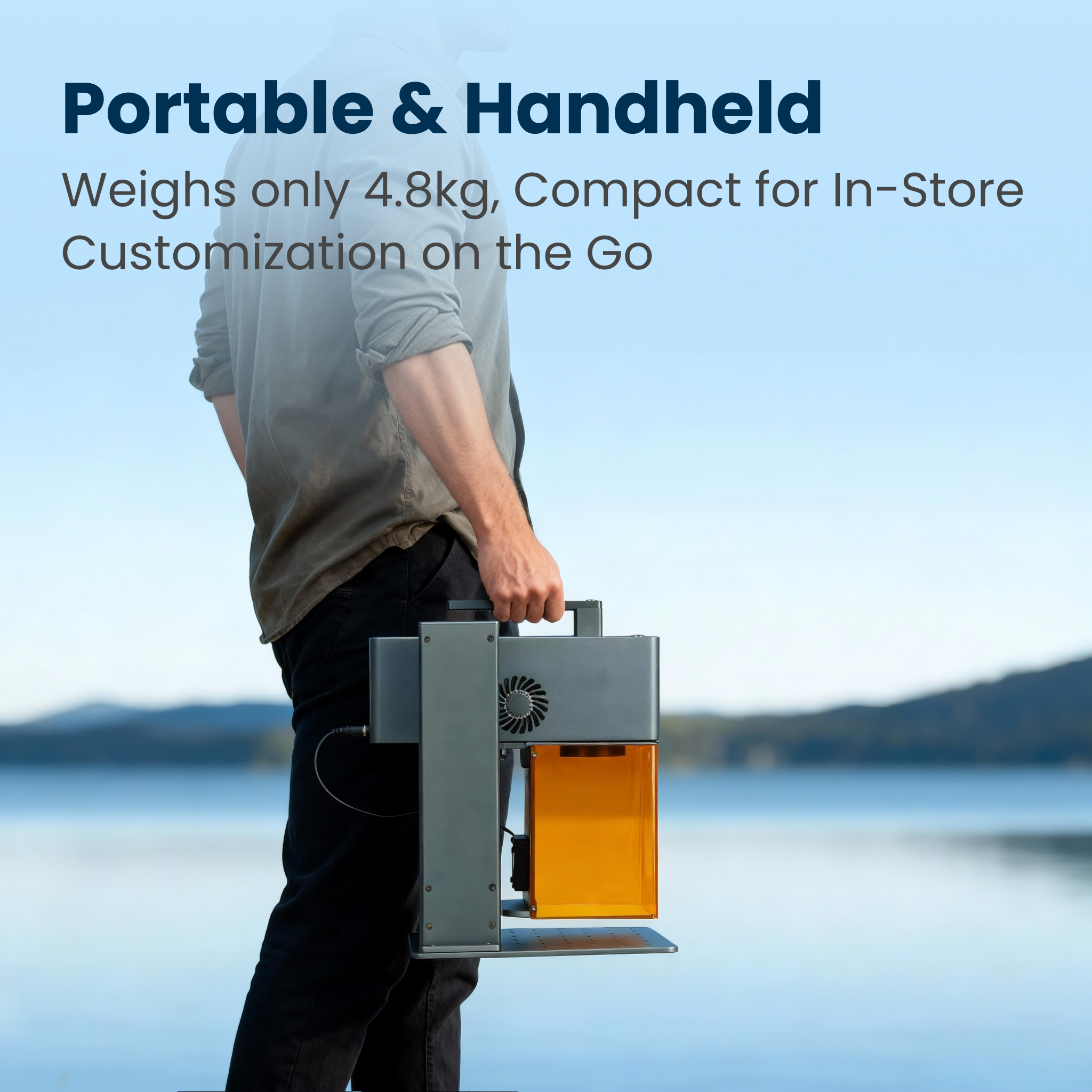

| Product Weight | 10.58 lb (4.8kg) | ||
| Product Dimensions | 8.00" × 9.84" × 12.68"(203mm × 250mm × 322mm) | ||
| Safety Certification | Class 4 Laser Safety | ||
FAQs
The InstaMark can engrave a wide variety of materials, including wood, leather, plastic, metal, glass, and more. Whether you're customizing phone cases, jewelry, or corporate gifts, this machine handles multiple materials with precision.
Yes! The InstaMark comes pre-assembled and is user-friendly. It supports Lightburn software and a variety of file formats, making it easy for both beginners and experienced users to operate.
The InstaMark comes with an electric focus adjustment feature, allowing you to easily adjust the focus for different materials, ensuring optimal engraving quality every time.
The InstaMark supports Lightburn software and works with a variety of file formats, including PLT, DXF, AI, JPG, PNG, and more.

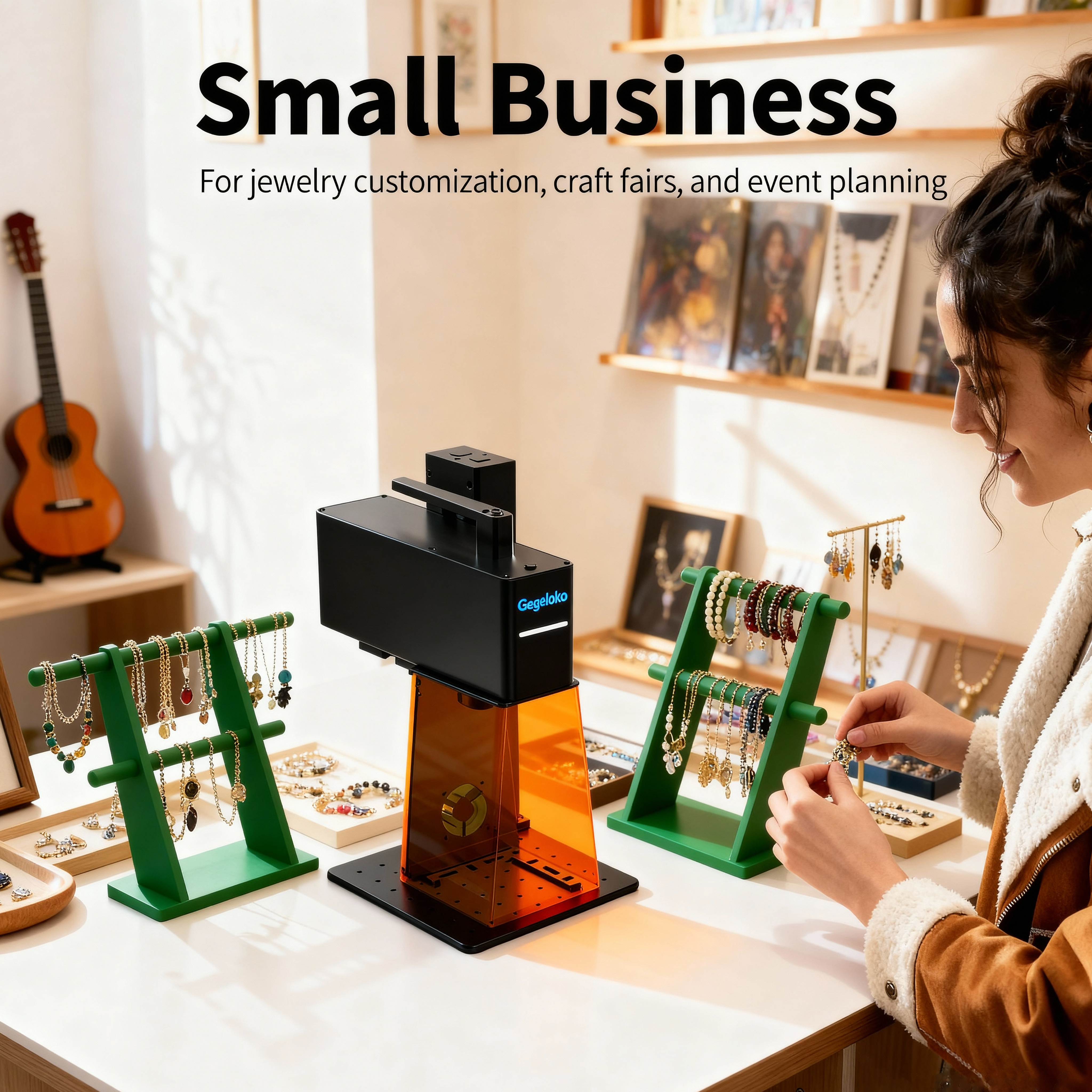

Absolutely! The InstaMark is ideal for small businesses, such as custom gift shops, craft fairs, pet stores, and fashion accessories retailers. It allows you to offer high-quality, personalized products to your customers.
Yes! The InstaMark supports Wi-Fi connectivity for mobile devices and USB for computers, providing flexibility in how you connect and operate the engraver.
